Product features:

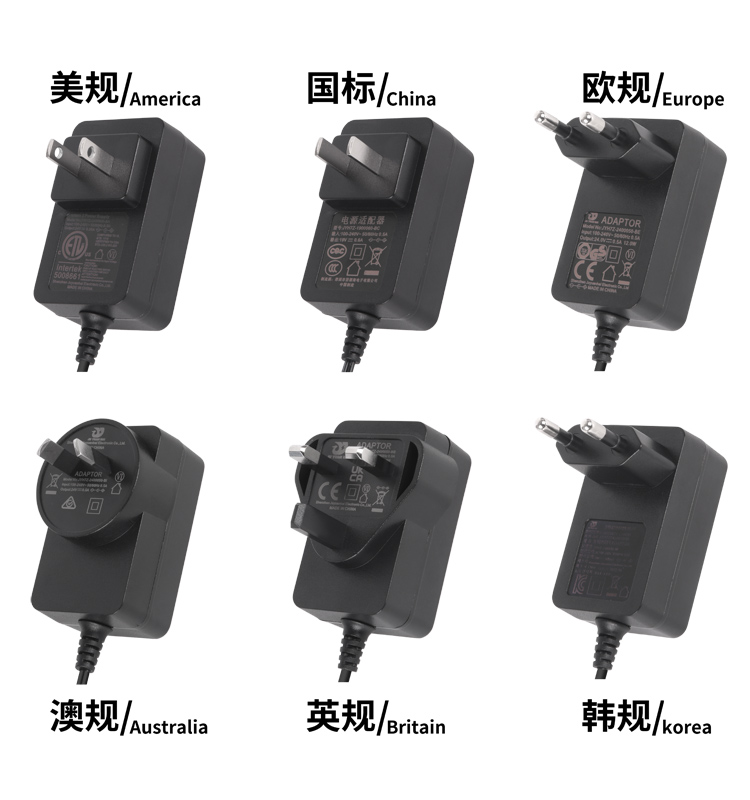

1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2 with short circuit, overload, over-current protection function, use more safety.
3 100% full load test, stable performance.
4 good insulation properties, high dielectric strength.
5 the anti-jamming good strength, high reliability.
6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.
7 products through international certification requirements.
Switching power supply performance
| Product Features: |
| ✸Operating temperature range: -20℃ to +40℃ |
| ✸High reliability, Ⅵ-level energy efficiency, low ripple noise |
| ✸Output short circuit, over current, over voltage protection |
| ✸EMI：EN55032/EN55014/CISPR32/CLASS B |
| ✸Safety: UL/EN/IEC/BS62368, EN/IEC61558 and other standards |
| 产品特性： |
| ✸工作温度范围：-20℃ to +40℃ |
| ✸高可靠性，Ⅵ级能效，低纹波噪声 |
| ✸输出具有：短路，过电流，过电压保护 |
| ✸EMI性能满足：EN55032/EN55014/CISPR32/CLASS B |
| ✸安规符合：UL/EN/IEC/BS EN62368,EN/IEC61558,等标准 |
| Input Voltage 输入电压压 |
Output Voltage 输出电压 |
Output Current 输出电流 |
Output Watt 输出功率 |

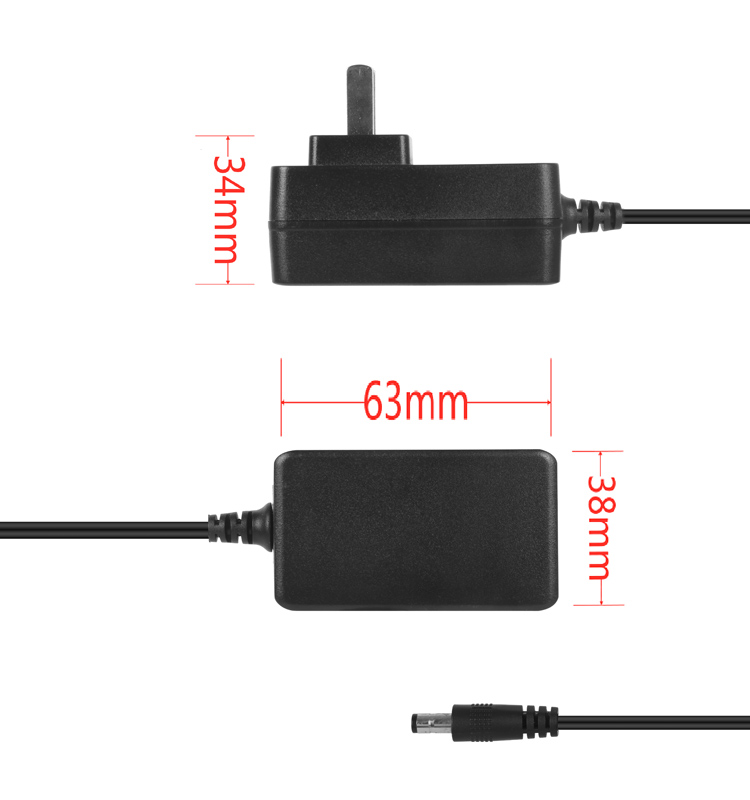

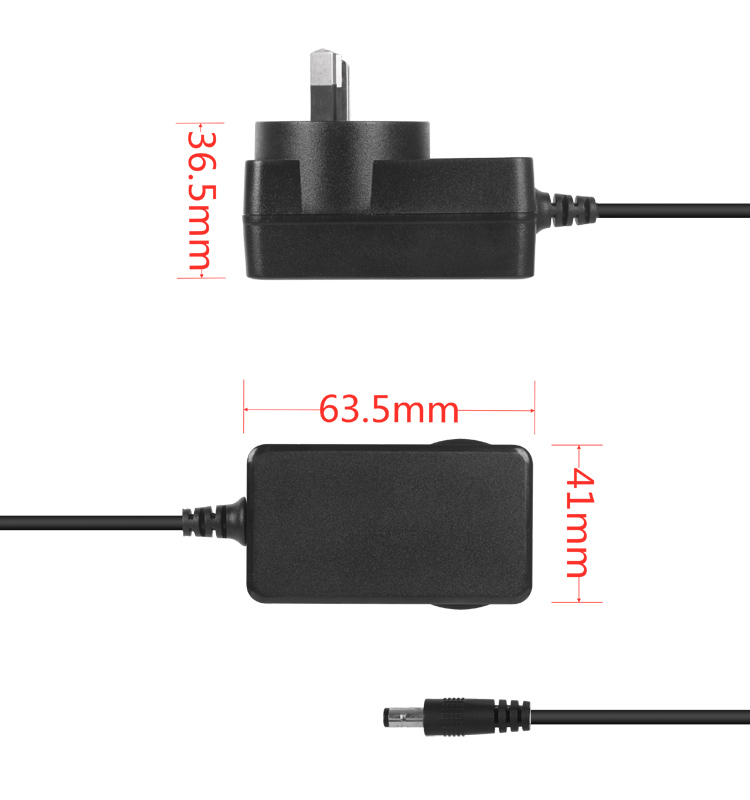

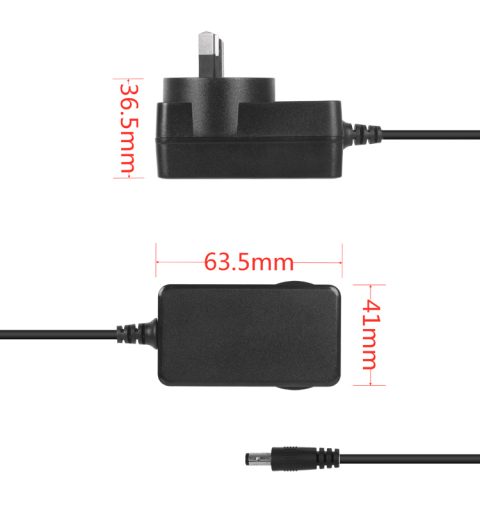

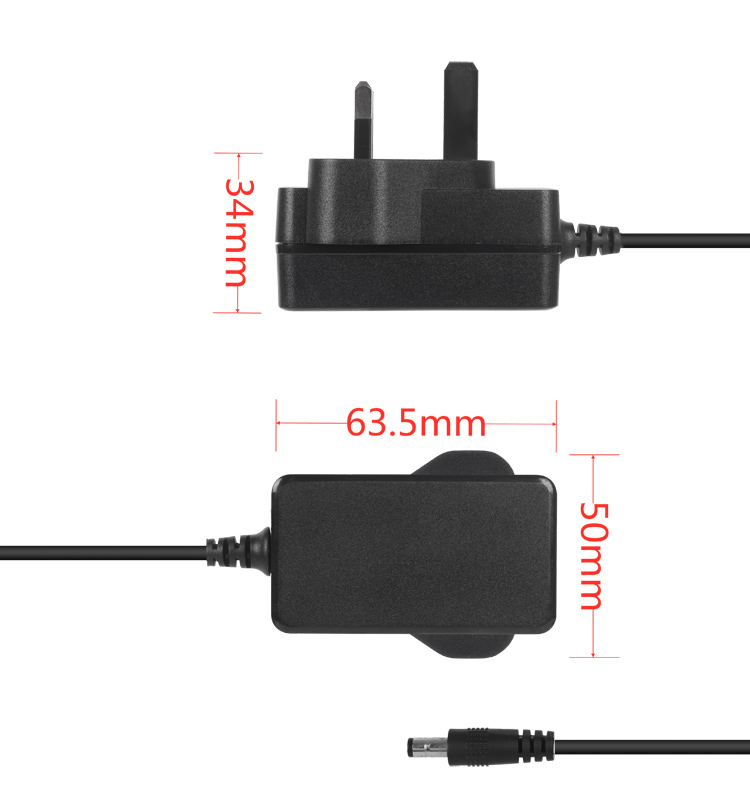

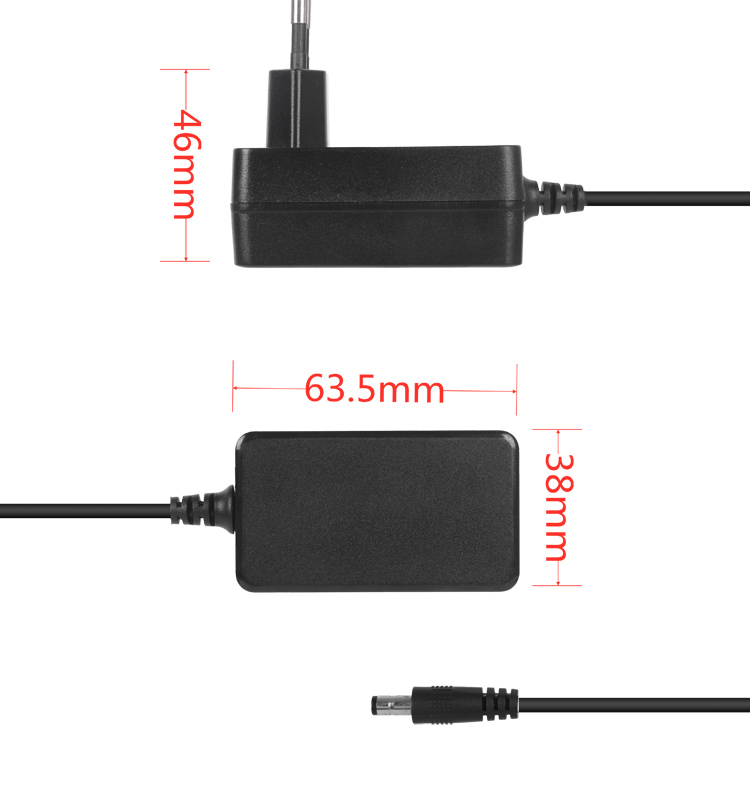

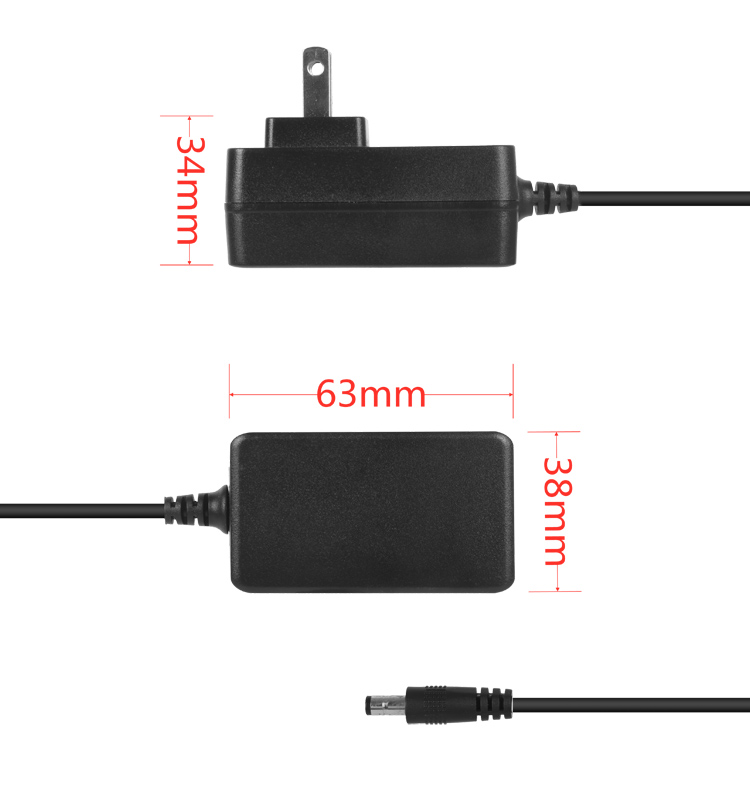

Size 尺寸 |
Safety 安规 |
| 100-240VAC 50/60Hz | 5.0V | 0.01-2.50A | 12.5W | L64*W38*H26mm | ETL,FCC,CE,UKCA,KC, SAA,RCM,CCC,CQC, PSE |
| 5.1-8.9V | 0.01-2.00A | 12.0W | |||
| 9.0-23.9V | 0.01-1.25A | 15.0W | |||
| 24.0-27.0V | 0.01-0.65A | 15.6W |
