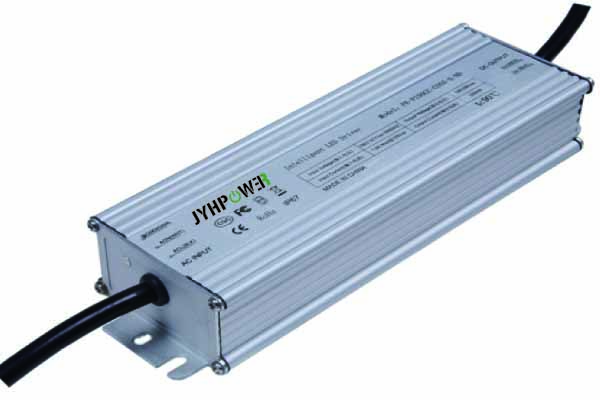

constant current LED driver dimmable 200W

• 3 years warranty(We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

• Constant current design with high accuracy.
• International wide input voltage.
• Wattage: 15w-200w
• 8Hrs and 100% full load burn-in test.
• High reliability designing solution
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• High efficiency,save energy ,protected environment
• High stability and low ripple, increase light efficiency and decrease light attenuation
• Meet to safety standard and EMC
• Assure LED stability long lift and light efficiency by constant current
• Passed high ,low temperature testing.
• Integrity protection,over loading, over voltage over current

Environment:

• Working Temperature : -40 ~ +50°C
• Working Humidity : 20 ~ 95% RH non-condensing
• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
• Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes

Safety:

• Safety Standards :   EN61347-1 EN61347-2-13. IP40
• Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
• Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
• EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
• EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Application:

• Indoor LED illuminating lights
• LED Neon, LED urban Decoration
• LED Lighting Advertising,LED Display
• Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels
