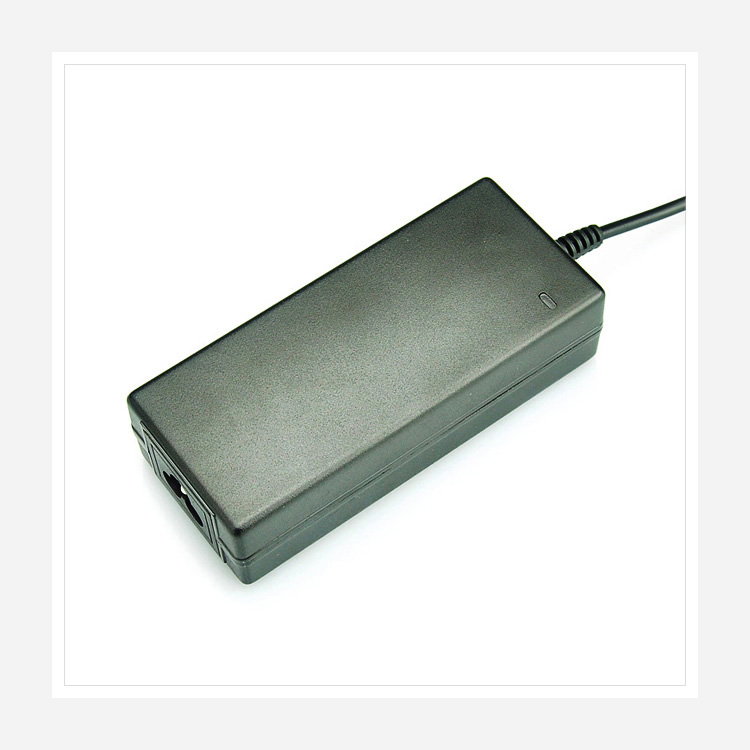

60W 12V5A JYH32-1205000 power supply
Model:JYH32-1205000 Output voltage：12V Output power：60W Regulation mode：PWM Output current：5A Work efficiency：83% Output ripple and noise：120mV
Product features:
1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2 with short circuit, overload, over-current protection function, use more safety.
3.100% full load test, stable performance.
4 good insulation properties, high dielectric strength.
5 the anti-jamming good strength, high reliability.
6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.
7 products through international certification requirements.
Switching power supply performance
Rated input: 100-240VAC 50/60Hz Max:90-264VAC 47/63Hz
Rated output: 12VDC +/-5%
Rated current: 5A
Rated power: 60W
No load standby power ≤0.5W
Effciency:83% min
The wave and noise: <180mV
Short circuit protection: interval type disconnect, fast recovery.
Overcurrent protection: 130%-150%
Overvoltage protection: 115%–135%
Working temperature: -10-50 degrees (plus or minus 10 DEG C)
Humidity: 20%-90%RH
Storage temperature: -40-80 degrees (plus or minus 10 DEG C)
The withstand voltage test: input to output: 3KV AC input: 3KV AC docking
Insulation resistance: 100M ohms
Cooling method: natural cooling
