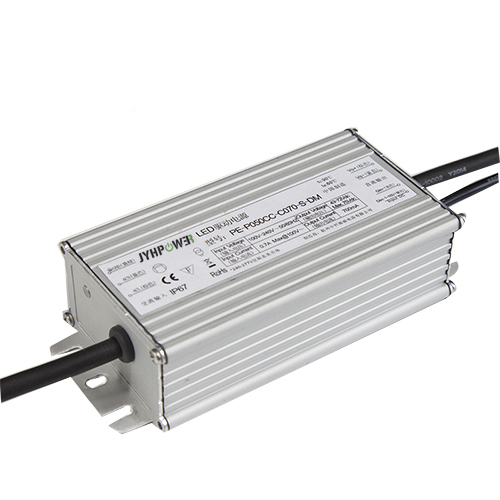

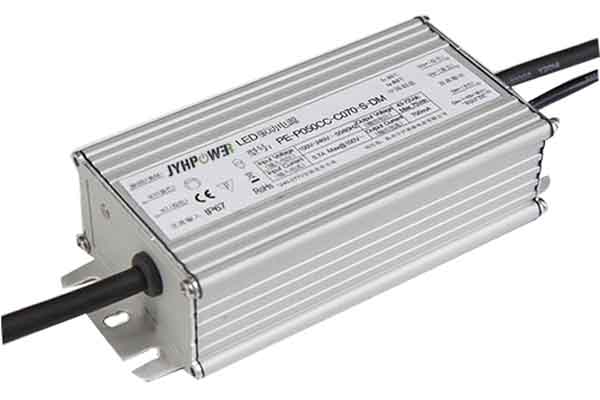

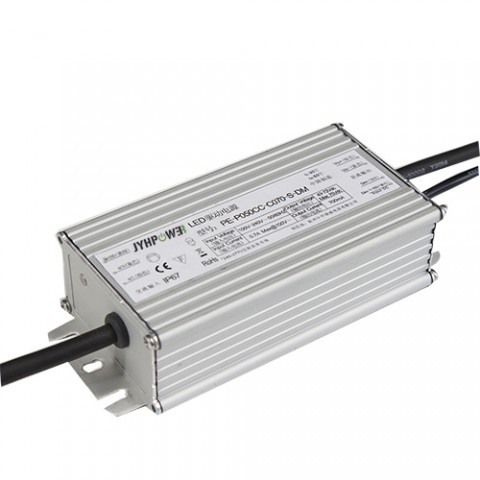

50W 0-10V/PWM dimmable Constant Current LED driver

Features:
Constant current design with high accuracy.
International wide input voltage.
Wattage: 15w-200w
8Hrs and 100% full load burn-in test.
High reliability designing solution
Cooling by free air convection
Suitable for LED lighting and moving sign applications
High efficiency,save energy ,protected environment
High stability and low ripple, increase light efficiency and decrease light attenuation
Meet to safety standard and EMC
Assure LED stability long lift and light efficiency by constant current
Passed high ,low temperature testing.
Integrity protection,over loading, over voltage over current
Environment:
Working Temperature : -40 ~ +50°C
Working Humidity : 20 ~ 95% RH non-condensing
Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes
Safety:
Safety Standards : EN61347-1 EN61347-2-13. IP40
Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Application:
Indoor LED illuminating lights
LED Neon, LED urban Decoration
LED Lighting Advertising,LED Display
Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
