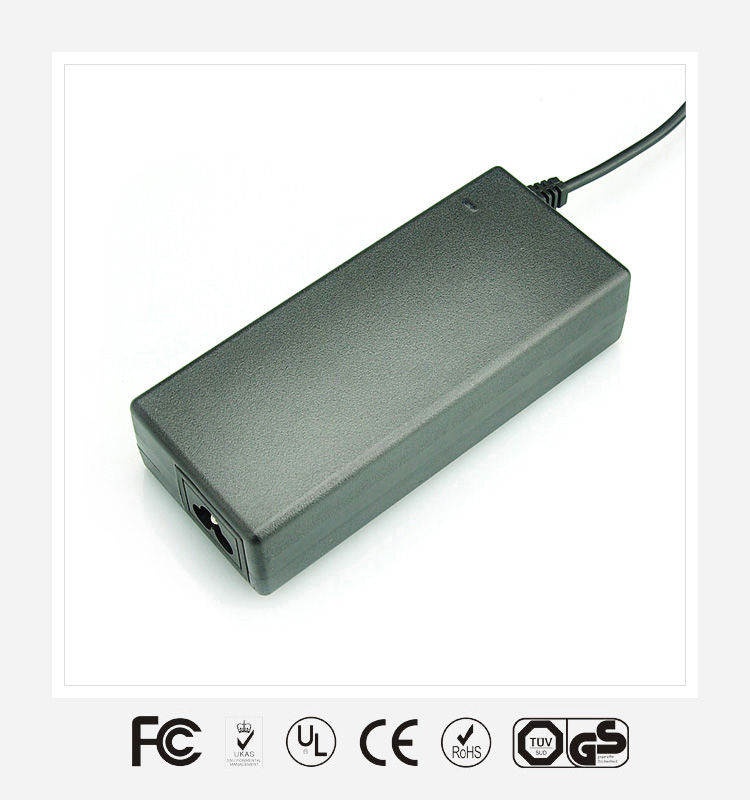

12V6.5A JYH32-1206500 Switching Power Supply with CE/GS/UL/FCC, Marks and Energy Star VI Level

Product features:

1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.

2 with short circuit, overload, over-current protection function, use more safety.

3.100% full load test, stable performance.

4 good insulation properties, high dielectric strength.

5 the anti-jamming good strength, high reliability.

6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.

7 products through international certification requirements.

Switching power supply performance

Rated input: 100-240VAC 50/60Hz Max:90-264VAC 47/63Hz

Rated output: 12VDC +/-5%

Rated current: 6.5A

Rated power: 90W

No load standby power ≤0.5W

Effciency:83% min

The wave and noise: <180mV

Short circuit protection: interval type disconnect, fast recovery.

Overcurrent protection: 130%-150%

Overvoltage protection: 115%–135%

Working temperature: -10-50 degrees (plus or minus 10 DEG C)

Humidity: 20%-90%RH

Storage temperature: -40-80 degrees (plus or minus 10 DEG C)

The withstand voltage test: input to output: 3KV AC input: 3KV AC docking

Insulation resistance: 100M ohms

Cooling method: natural cooling
