Product features:
1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2 with short circuit, overload, over-current protection function, use more safety.
3.100% full load test, stable performance.
4 good insulation properties, high dielectric strength.
5 the anti-jamming good strength, high reliability.
6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.
7 products through international certification requirements.

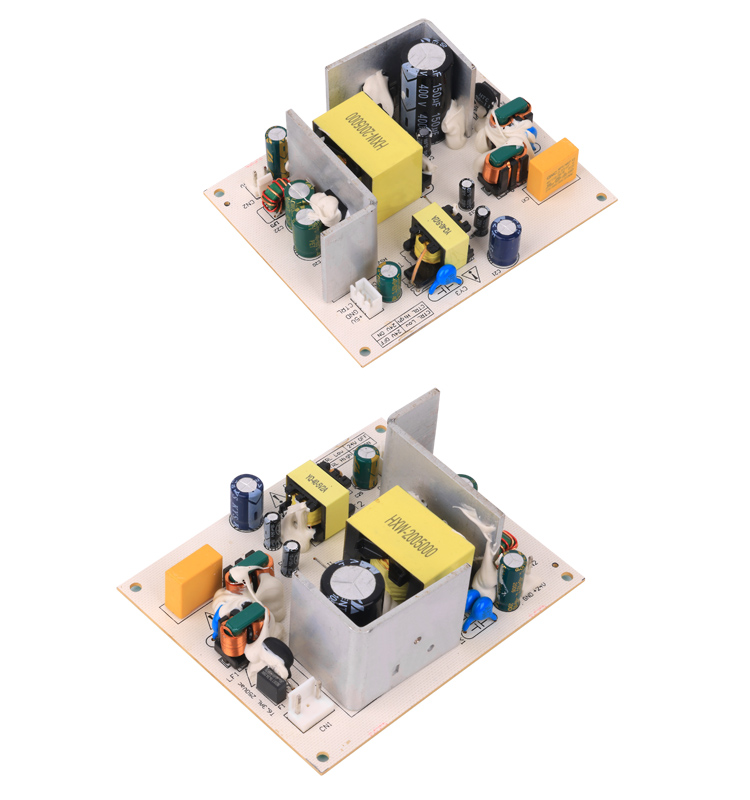

Switching power supply performance
| Product Features: |
| ✸Operating temperature range: -20℃ to +40℃ |
| ✸High reliability, Ⅵ-level energy efficiency, low ripple noise |
| ✸Output short circuit, over current, over voltage protection |
| ✸EMI：EN55032/EN55014/CISPR32/CLASS B |
| ✸Safety: UL/EN/IEC/BS62368, EN/IEC61558 and other standards |
| 产品特性： |
| ✸工作温度范围：-20℃ to +40℃ |
| ✸高可靠性，Ⅵ级能效，低纹波噪声 |
| ✸输出具有：短路，过电流，过电压保护 |
| ✸EMI性能满足：EN55032/EN55014/CISPR32/CLASS B |
| ✸安规符合：UL/EN/IEC/BS EN62368,EN/IEC61558,等标准 |
| Input Voltage 输入电压压 |
Output Voltage 输出电压 |
Output Current 输出电流 |
Output Watt 输出功率 |
Size 尺寸 |
Safety 安规 |
| 100-240VAC 50/60Hz | 5V Standby & +24V | 5A | 120.0W | L110*W75*H40mm | CE,FCC |
